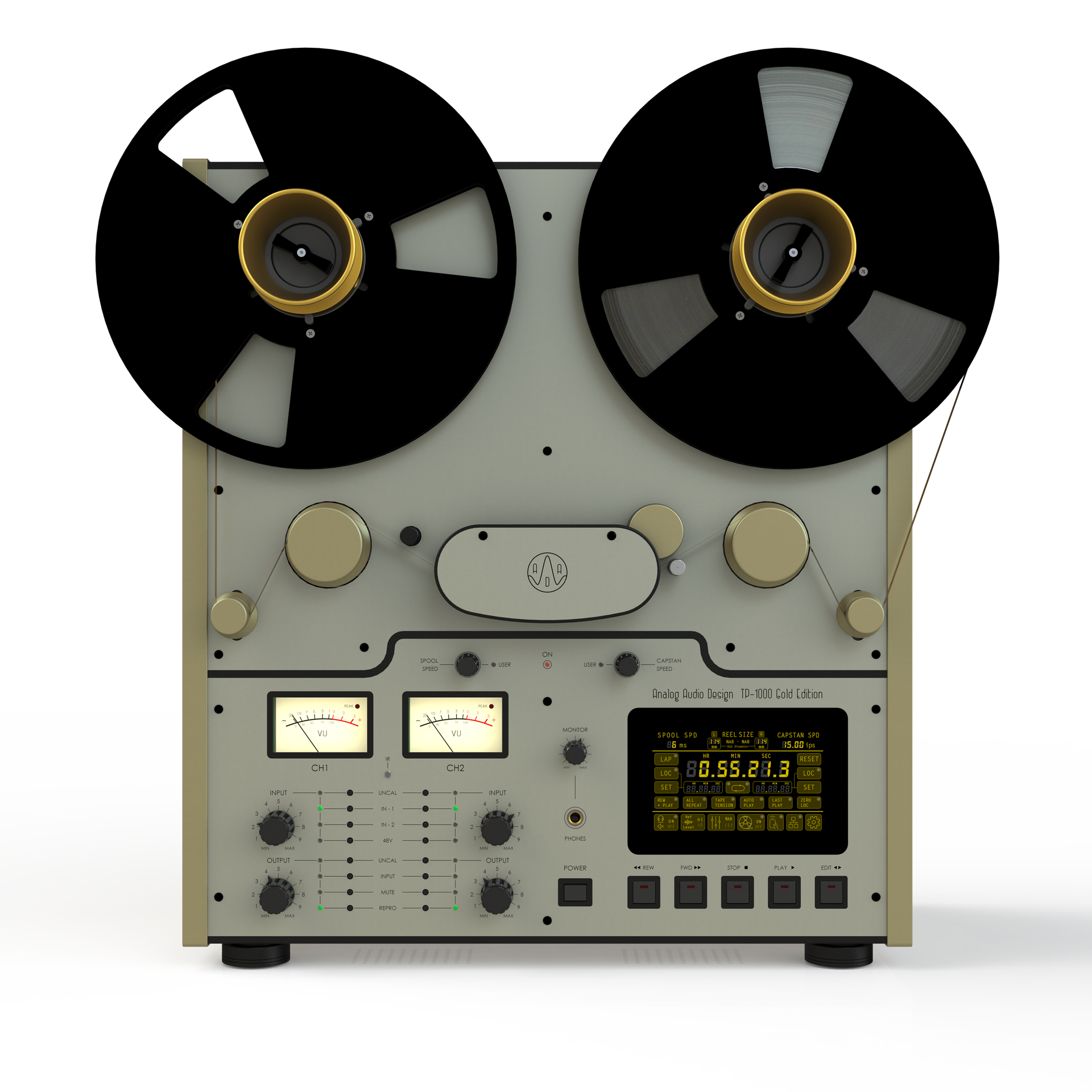

Tape Player TP-1000 Gold Edition

A lovely Distribution By PeopleLikeYou

PeopleLikeYou presents a Haute Couture hifi. From Lumen White speakers to Torqueo turntables, unique and timeless pieces that retain their values. Bespoke, “made to measure” is the concept of the products distributed by PeopleLikeYou. Each device is subject to customization by materials, finishes and colors. Your appliances are exclusive, they are made for you. This is the definition of luxury. Testing and listening at home. Try the devices at home, listening to your system is irreplaceable. Distribution: France / Monaco & Benelux. Worldwide Distribution for Analog Audio Design Tape Player.

After 4 years of development, Analog Audio Design is happy to present you the new reference of open reel to reel tape player being the highest quality medium for analog playback.

Description  ( download )

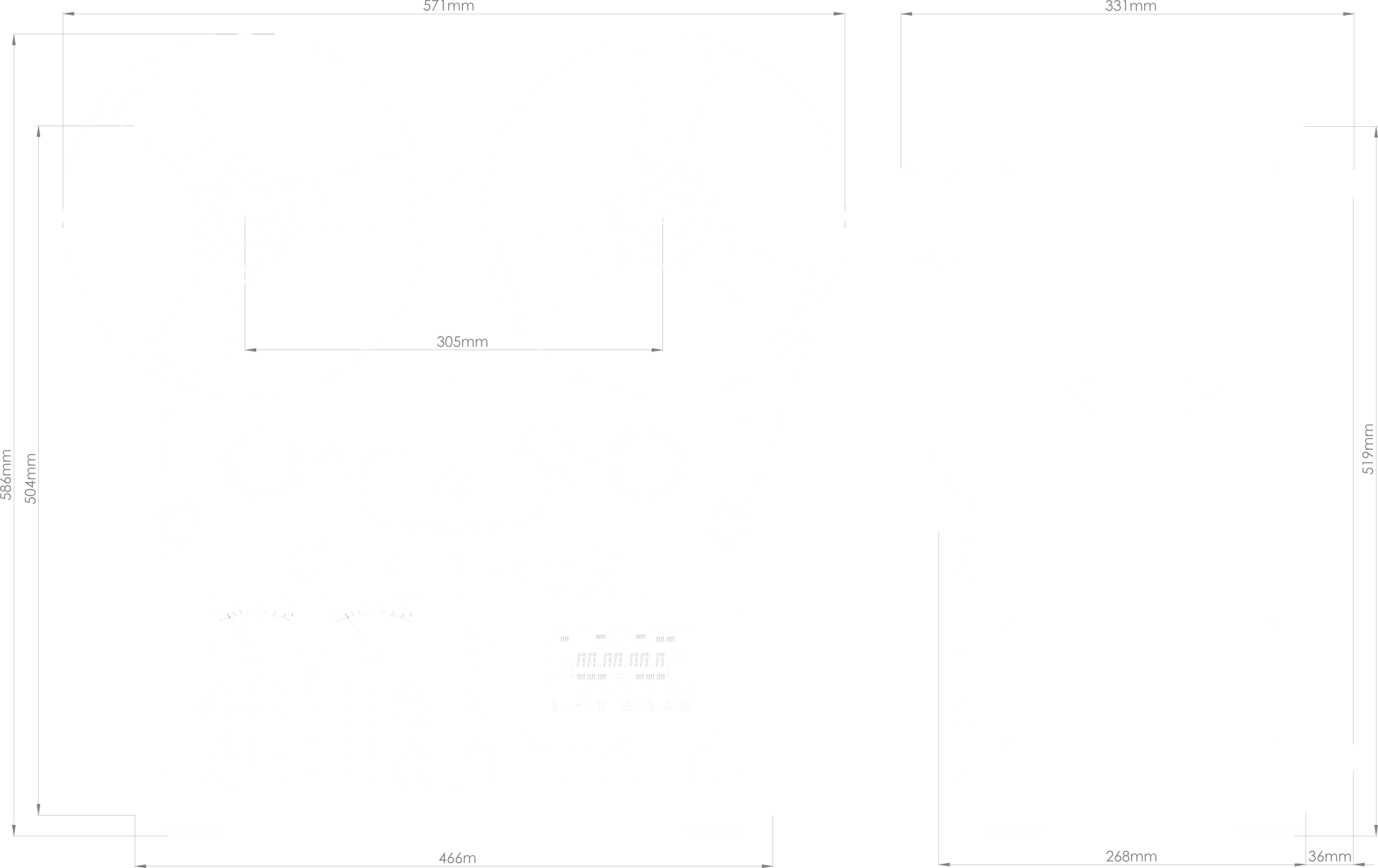

Mechanical • Tape : 1/4 inch (6.35mm)    Track Format : 2-track. 2 channel (DIN 0.106 inch, 2.7mm)  Max. Reel Size : 11.8 inch (30 cm)    Tape Speed : Switchable two speeds : 15 ips (38.1 cm/s) and 7.5 ips (19.05 cm/s)    Tape Speed Accuracy : Within +/-0.05%  Pitch Control Range : +/-100%, resolution of 0.01 ips   Wow and Flutter : 15 ips = <0.045% peak, weigthed (DIN 45507),   7.5 ips = <0.09% peak, weigthed (DIN 45507)   Wind Speed : Switchable three speeds = 2 m/s, 6 m/s, 10 m/s    Wind Speed Control : 1 m/s to 12 m/s, resolution of 1 m/s    Capstan Motor : DC servo motor, belt drive    Reel Motor : 2x DC motor, belt drive    Dimensions (WxHxD) : 466mm x 519mm x 305mm   Weight : 70.55 lbs (32 kg)

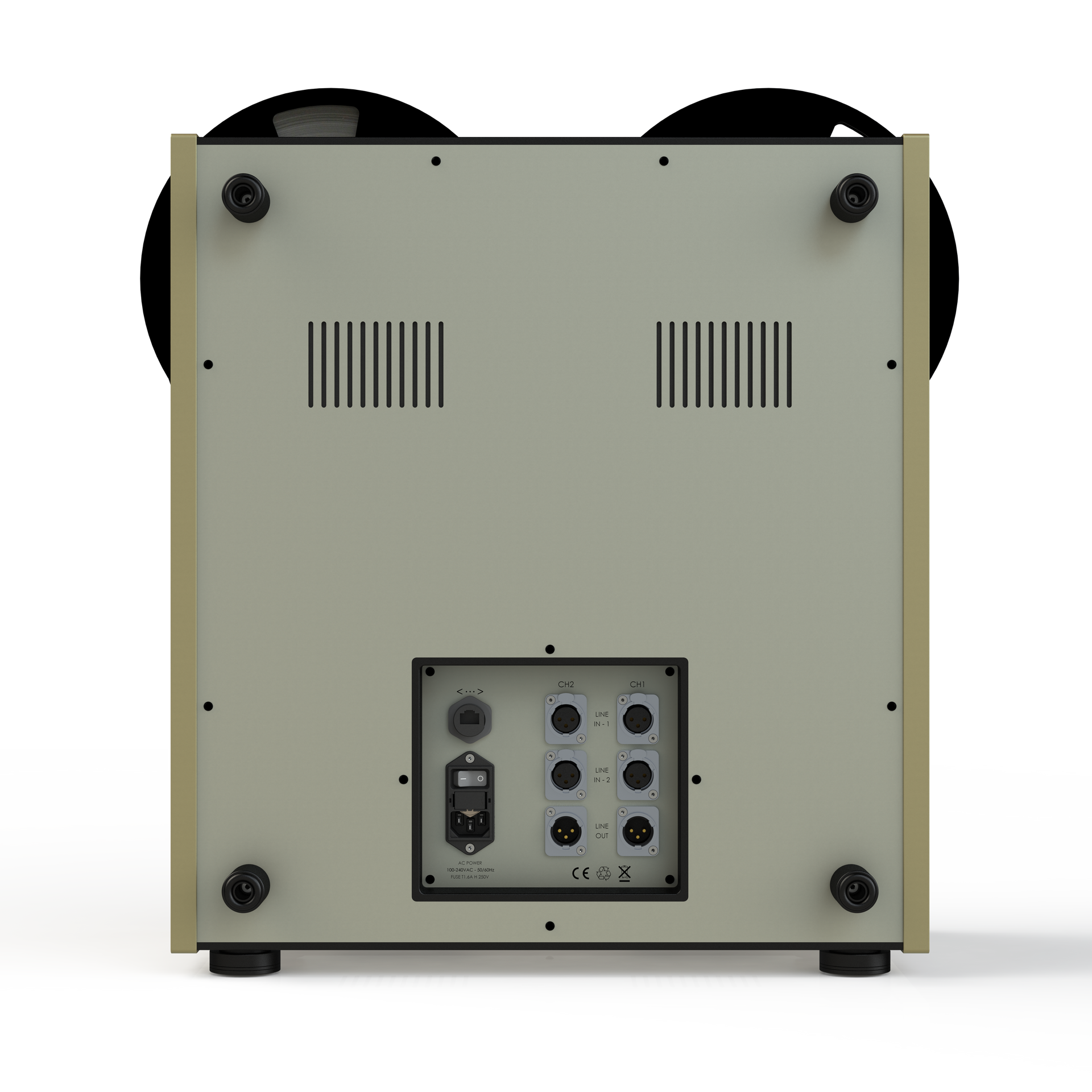

Electrical • Power Supply : Connector = IEC 3-pole,   Voltage Range = 90 to 264 VAC,  Frequency Range = 47 to 63 Hz  Power Consumption = 40 W maximum    Input 1 : Connector = XLR,   Level selectable = Balanced = +4dBu (in CAL), Unbalanced = -10dBV (in CAL)    Input 2 : Connector = XLR   (powered 48V) Level selectable = -60 dBV (in CAL), -40 dBV (in CAL)    Output : Connector = XLR,   Level selectable = Balanced = +4dBu (in CAL), Unbalanced = -10dBV (in CAL) Headphone Ouput : 1.5 W maximum (8 ohm load) Ethernet : RJ45 10/100Base-T for remote control and firmware update IR Input : Infrared remote control

Audio • Equalization : NAB or IEC, switchable   Reproduce Record Level : 320 nWb/m or 514 nWb/m, switchable    Frequency Response : 15 ips = 30hz to 22kHz (+/-2 dB) at 0 VU ,   7.5 ips = 30hz to 20kHz (+/-2 dB) at 0 VU   Signal-To-Noise Ratio : (THD-N, in CAL) / A-Weighting =   15 ips = 71 dB / 78 dB,  7.5 ips = 70 dB / 77 dB   Distortion : 0.8% or less at 1kHz, 15 ips   Channel Crosstalk : 60 dB or more
