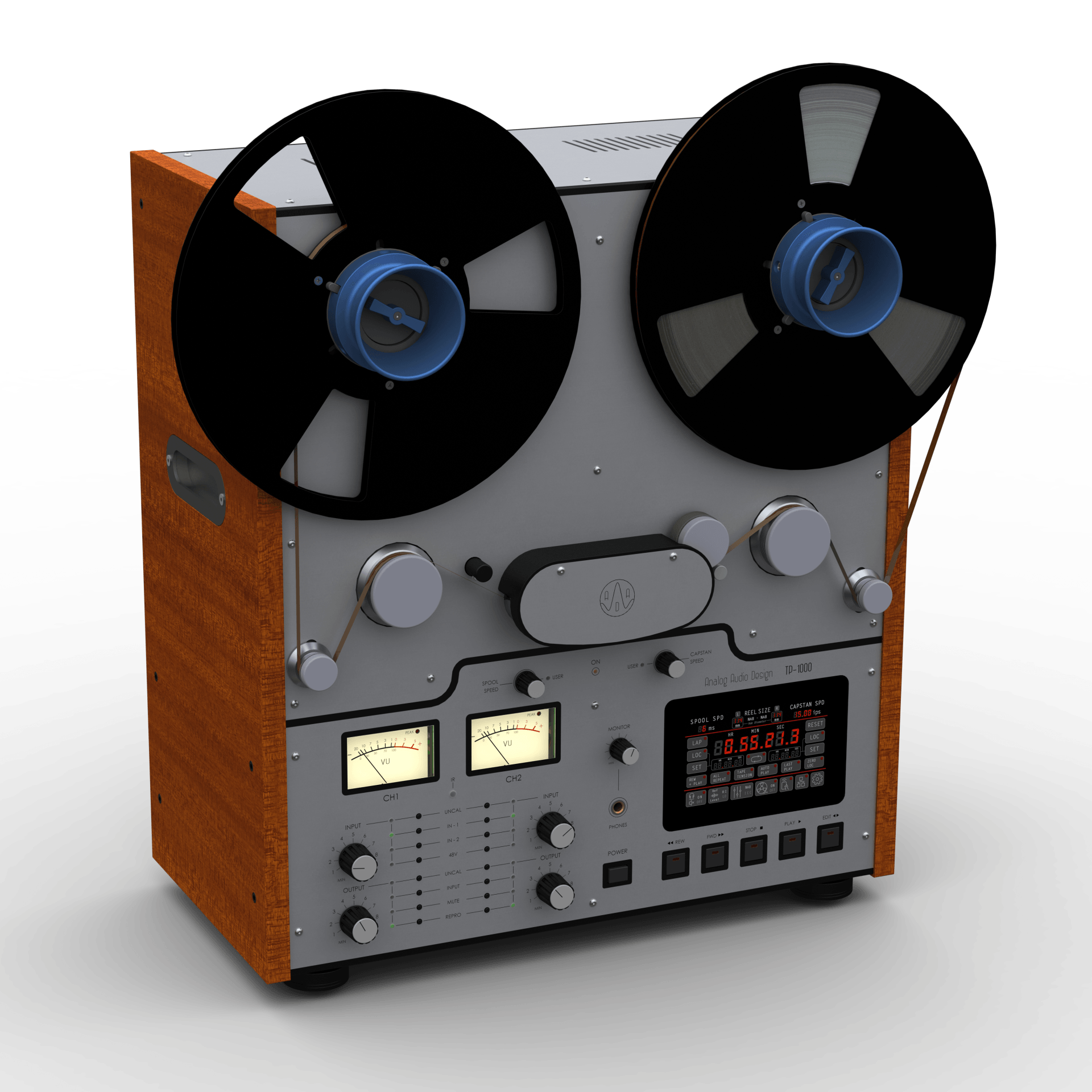

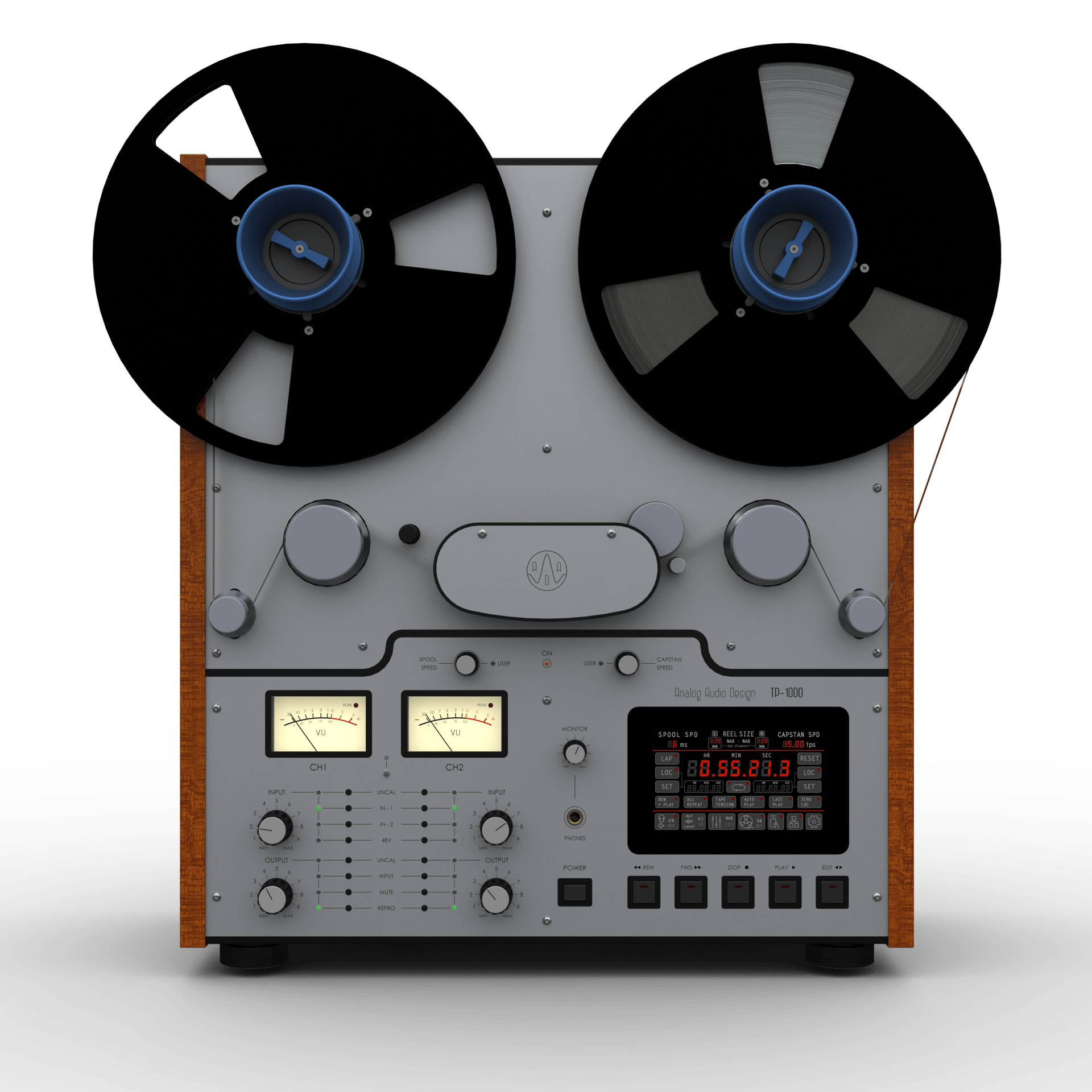

Magnétophone lecteur seul : TP-1000

Disponible à la commande : ICI

Après 4 ans de développement, Analog Audio Design est heureux de vous présenter la nouvelle référence de magnétophone à bandes magnétiques étant le meilleur média pour l'écoute du son analogique.

Description  ( téléchargement )

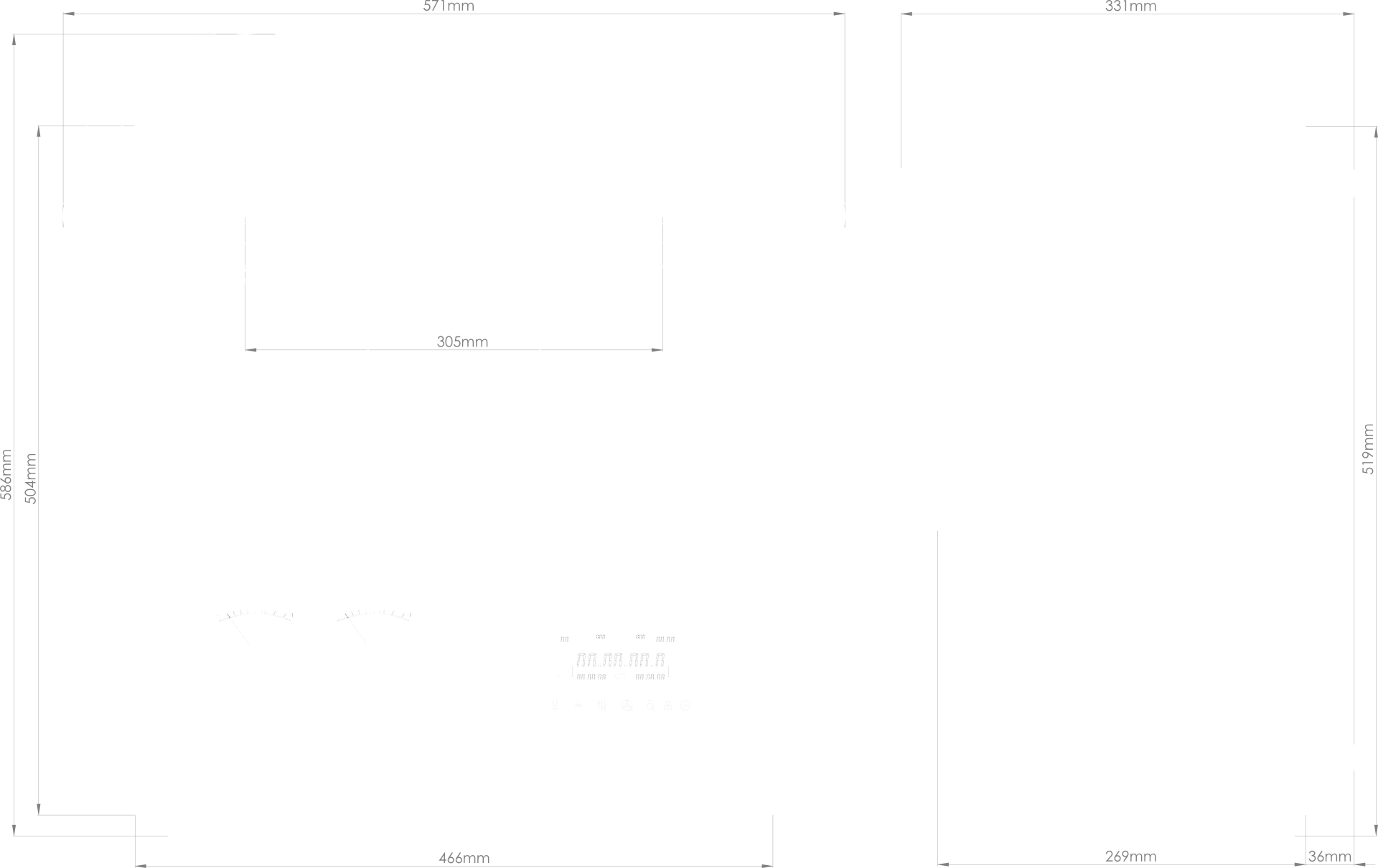

Mechanical • Tape : 1/4 inch (6.35mm)    Track Format : 2-track. 2 channel (DIN 0.106 inch, 2.7mm)  Max. Reel Size : 11.8 inch (30 cm)    Tape Speed : Switchable two speeds : 15 ips (38.1 cm/s) and 7.5 ips (19.05 cm/s)    Tape Speed Accuracy : Within +/-0.05%  Pitch Control Range : +/-100%, resolution of 0.01 ips   Wow and Flutter : 15 ips = <0.045% peak, weigthed (DIN 45507),   7.5 ips = <0.09% peak, weigthed (DIN 45507)   Wind Speed : Switchable three speeds = 2 m/s, 6 m/s, 10 m/s    Wind Speed Control : 1 m/s to 12 m/s, resolution of 1 m/s    Capstan Motor : DC servo motor, belt drive    Reel Motor : 2x DC motor, belt drive    Dimensions (WxHxD) : 466mm x 519mm x 305mm   Weight : 61.73 lbs (28 kg)

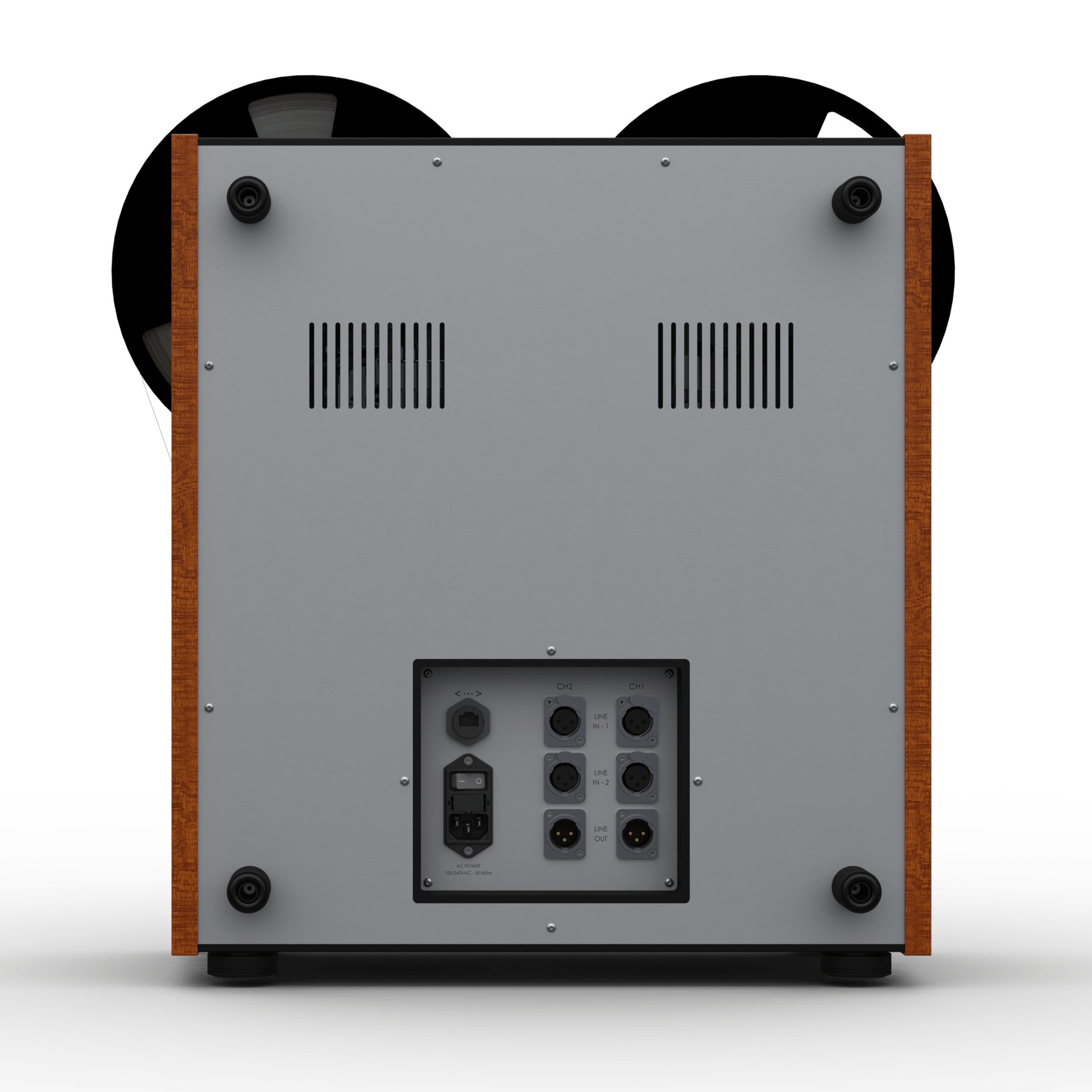

Electrical • Power Supply : Connector = IEC 3-pole,   Voltage Range = 90 to 264 VAC,  Frequency Range = 47 to 63 Hz  Power Consumption = 40 W maximum    Input 1 : Connector = XLR,   Level selectable = Balanced = +4dBu (in CAL), Unbalanced = -10dBV (in CAL)    Input 2 : Connector = XLR   (powered 48V) Level selectable = -60 dBV (in CAL), -40 dBV (in CAL)    Output : Connector = XLR,   Level selectable = Balanced = +4dBu (in CAL), Unbalanced = -10dBV (in CAL) Headphone Ouput : 1.5 W maximum (8 ohm load) Ethernet : RJ45 10/100Base-T for remote control and firmware update IR Input : Infrared remote control

Audio • Equalization : NAB or IEC, switchable   Reproduce Record Level : 320 nWb/m or 514 nWb/m, switchable    Frequency Response : 15 ips = 30hz to 22kHz (+/-2 dB) at 0 VU ,   7.5 ips = 30hz to 20kHz (+/-2 dB) at 0 VU   Signal-To-Noise Ratio : (THD-N, in CAL) / A-Weighting =   15 ips = 71 dB / 78 dB,  7.5 ips = 70 dB / 77 dB   Distortion : 0.8% or less at 1kHz, 15 ips   Channel Crosstalk : 60 dB or more
