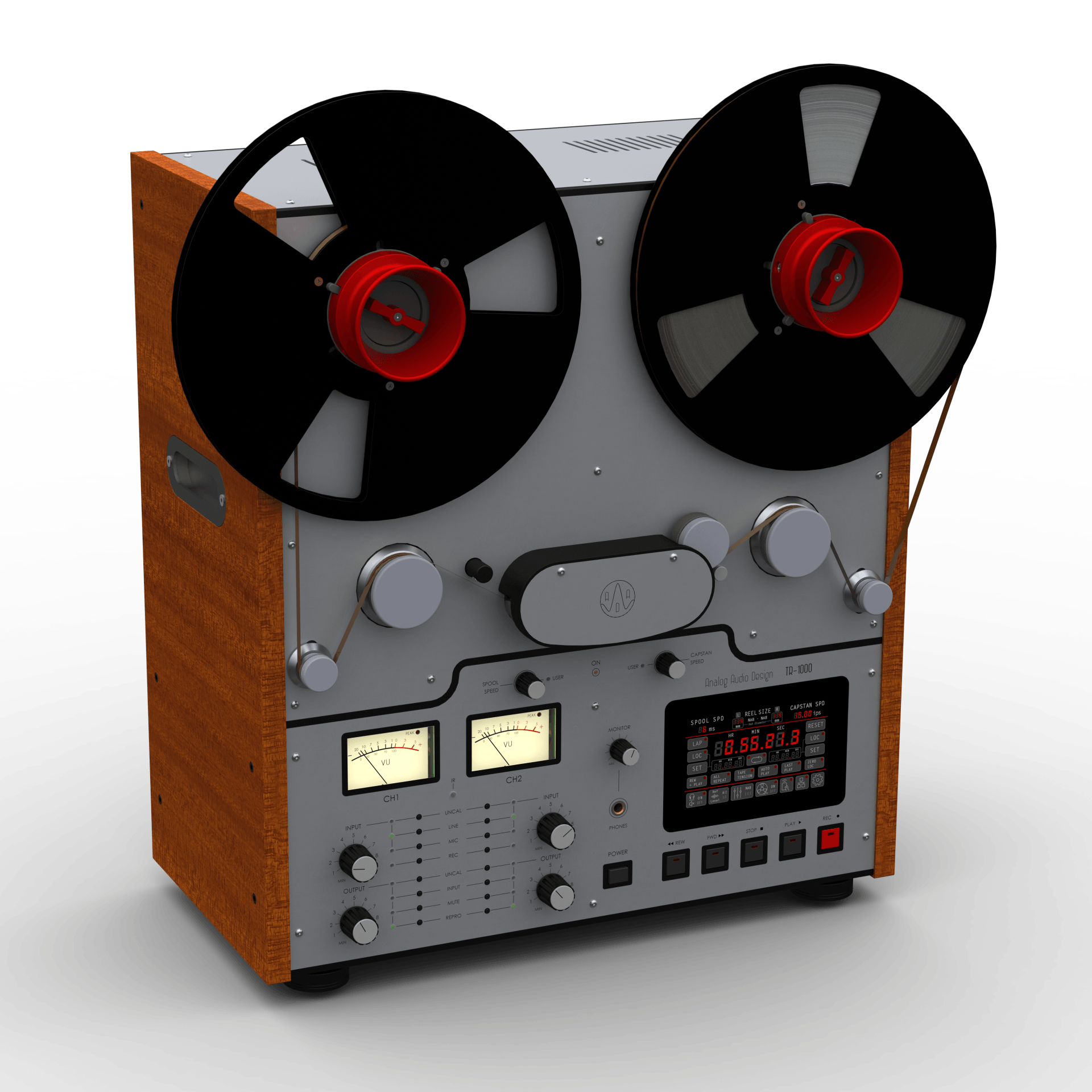

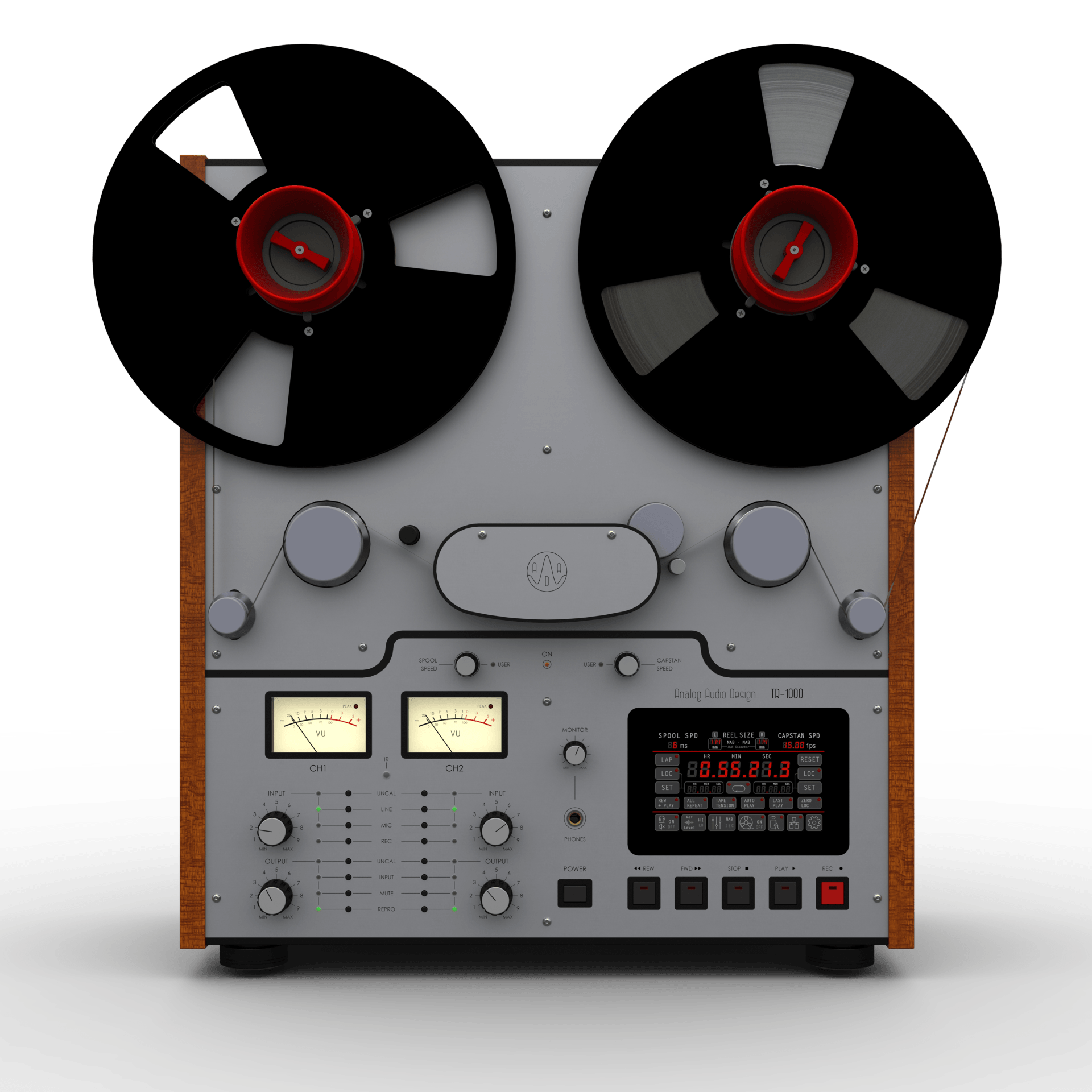

Tape Player TR-1000
(available during 2024)
New Open Reel Tape Recorder for uncompromising Recording and listening !
After 4 years of development, Analog Audio Design is happy to present you the new reference of open reel to reel tape recorder being the highest quality medium for analog record and playback.
Description ( download )
Mechanical • Tape : 1/4 inch (6.35mm) Track Format : 2-track. 2 channel (DIN 0.106 inch, 2.7mm) Max. Reel Size : 11.8 inch (30 cm) Tape Speed : Switchable two speeds : 15 ips (38.1 cm/s) and 7.5 ips (19.05 cm/s) Tape Speed Accuracy : Within +/-0.05% Pitch Control Range : +/-100%, resolution of 0.01 ips Wow and Flutter : 15 ips = <0.045% peak, weigthed (DIN 45507), 7.5 ips = <0.09% peak, weigthed (DIN 45507) Wind Speed : Switchable three speeds = 2 m/s, 6 m/s, 10 m/s Wind Speed Control : 1 m/s to 12 m/s, resolution of 1 m/s Capstan Motor : DC servo motor, belt drive Reel Motor : 2x DC motor, belt drive Dimensions (WxHxD) : 466mm x 519mm x 305mm Weight : 61.73 lbs (28 kg)
Electrical • Power Supply : Connector = IEC 3-pole, Voltage Range = 90 to 264 VAC, Frequency Range = 47 to 63 Hz Power Consumption = 40 W maximum Input 1 : Connector = XLR, Level selectable = Balanced : +4dBu (in CAL), Unbalanced : -10dBV (in CAL) Input 2 : Connector = XLR (powered 48V) Level selectable = -60 dBV (in CAL), -40 dBV (in CAL) Output : Connector = XLR, Level selectable = Balanced = +4dBu (in CAL), Unbalanced = -10dBV (in CAL) Headphone Ouput : 1.5 W maximum (8 ohm load) Ethernet : RJ45 10/100Base-T for remote control and firmware update IR Input : Infrared remote control
Audio • Equalization : NAB or IEC, switchable Reproduce Record Level : 320 nWb/m or 514 nWb/m, switchable Frequency Response : 15 ips = 30hz to 22kHz (+/-2 dB) at 0 VU , 7.5 ips = 30hz to 20kHz (+/-2 dB) at 0 VU Signal-To-Noise Ratio : (THD-N, in CAL) / A-Weighting = 15 ips = 71 dB / 78 dB, 7.5 ips = 70 dB / 77 dB Distortion : 0.8% or less at 1kHz, 15 ips Channel Crosstalk : 60 dB or more Bias Frequency : ---kHz Erasure : --dB or more, at 1kHZ, ---nWb/m

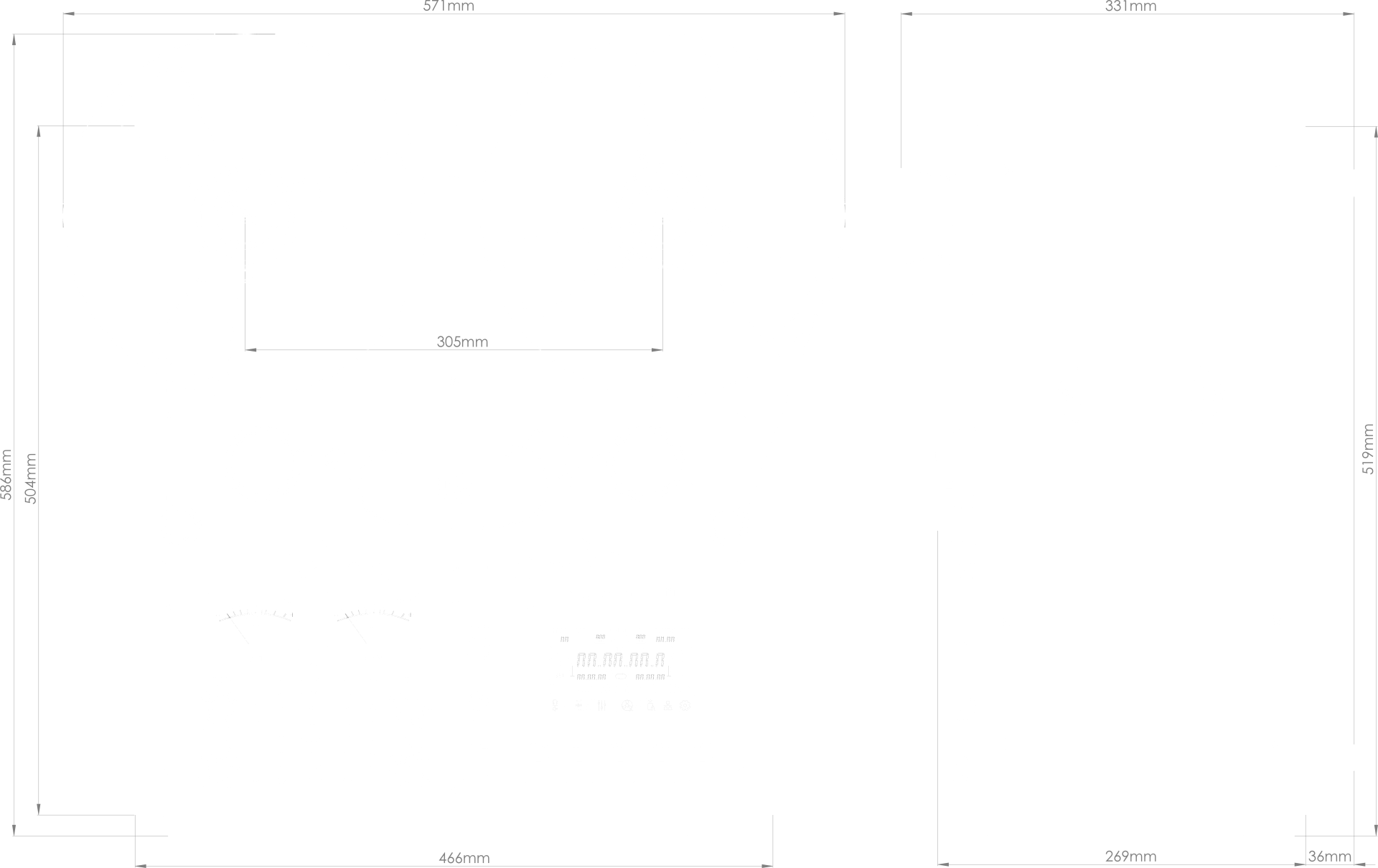

External Dimensions
