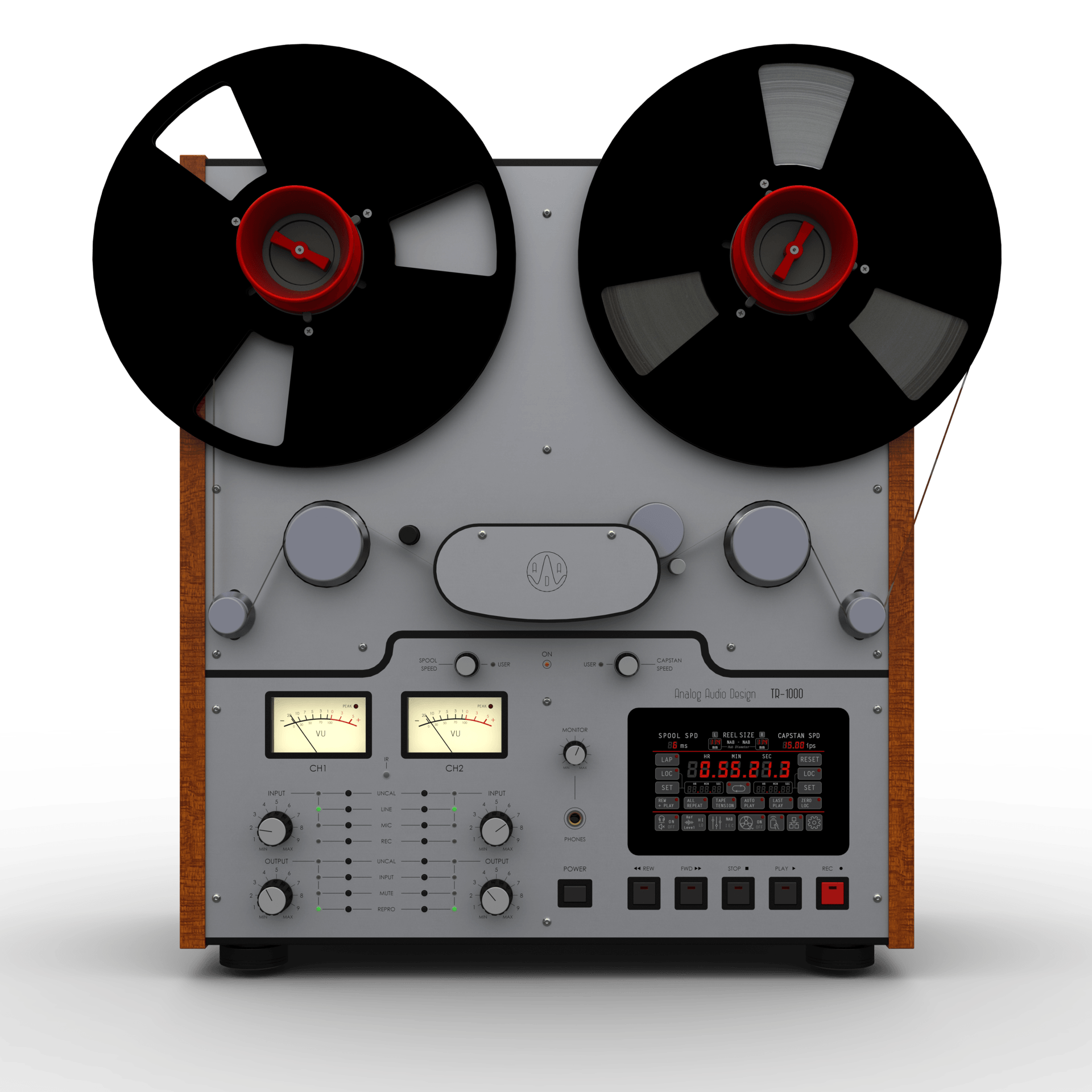

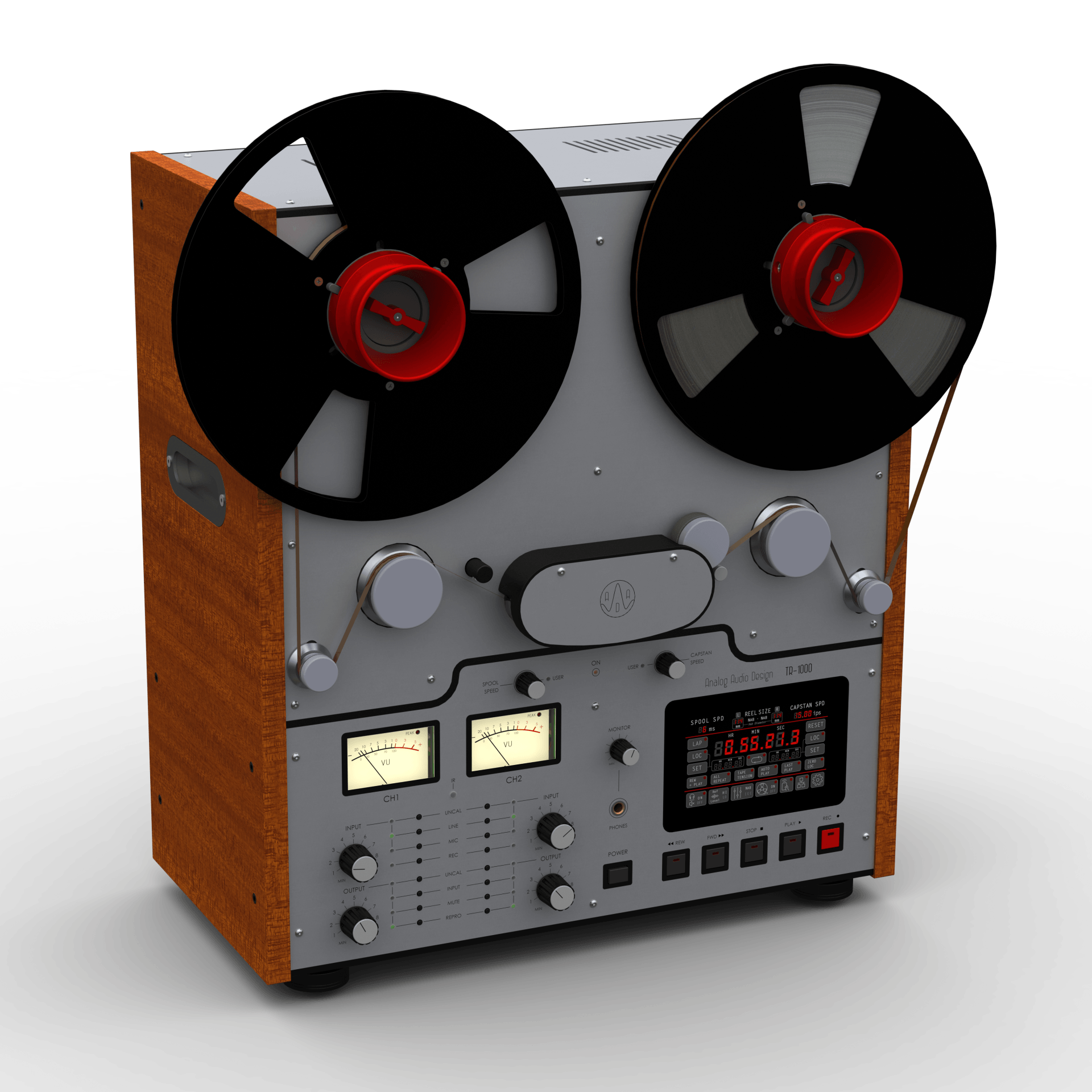

Magnétophone lecteur et enregistreur : TR-1000
(Disponibilité courant 2024)
Nouveau magnétophone à bandes magnétiques pour l'enregistrement et l'écoute sans compromis !
Après 4 ans de développement, Analog Audio Design est heureux de vous présenter la nouvelle référence de magnétophone à bandes magnétiques étant le meilleur média pour l'écoute et l'enregistrement du son analogique.
Description ( téléchargement )
Mechanical • Tape : 1/4 inch (6.35mm) Track Format : 2-track. 2 channel (DIN 0.106 inch, 2.7mm) Max. Reel Size : 11.8 inch (30 cm) Tape Speed : Switchable two speeds : 15 ips (38.1 cm/s) and 7.5 ips (19.05 cm/s) Tape Speed Accuracy : Within +/-0.05% Pitch Control Range : +/-100%, resolution of 0.01 ips Wow and Flutter : 15 ips = <0.045% peak, weigthed (DIN 45507), 7.5 ips = <0.09% peak, weigthed (DIN 45507) Wind Speed : Switchable three speeds = 2 m/s, 6 m/s, 10 m/s Wind Speed Control : 1 m/s to 12 m/s, resolution of 1 m/s Capstan Motor : DC servo motor, belt drive Reel Motor : 2x DC motor, belt drive Dimensions (WxHxD) : 466mm x 519mm x 305mm Weight : 61.73 lbs (28 kg)

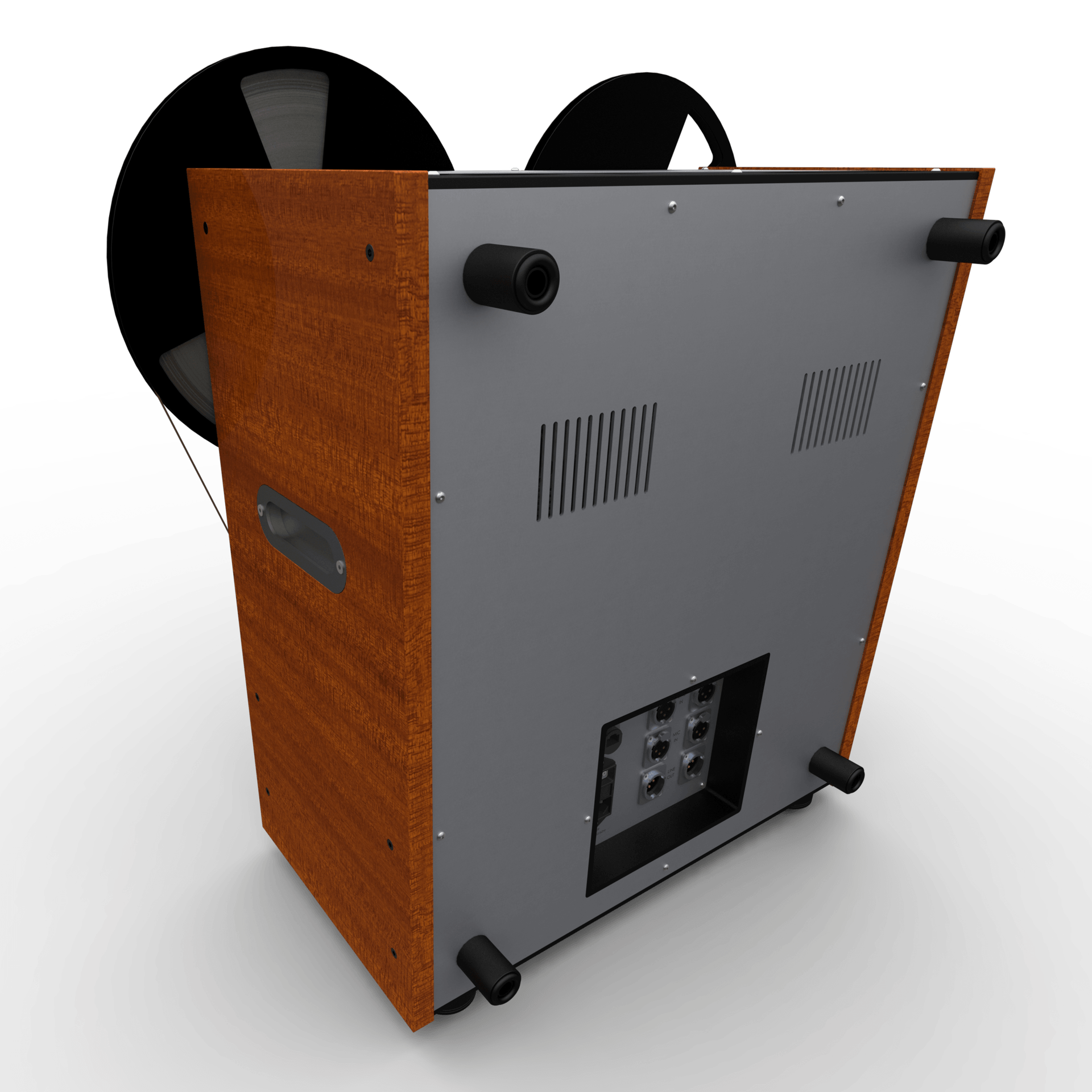

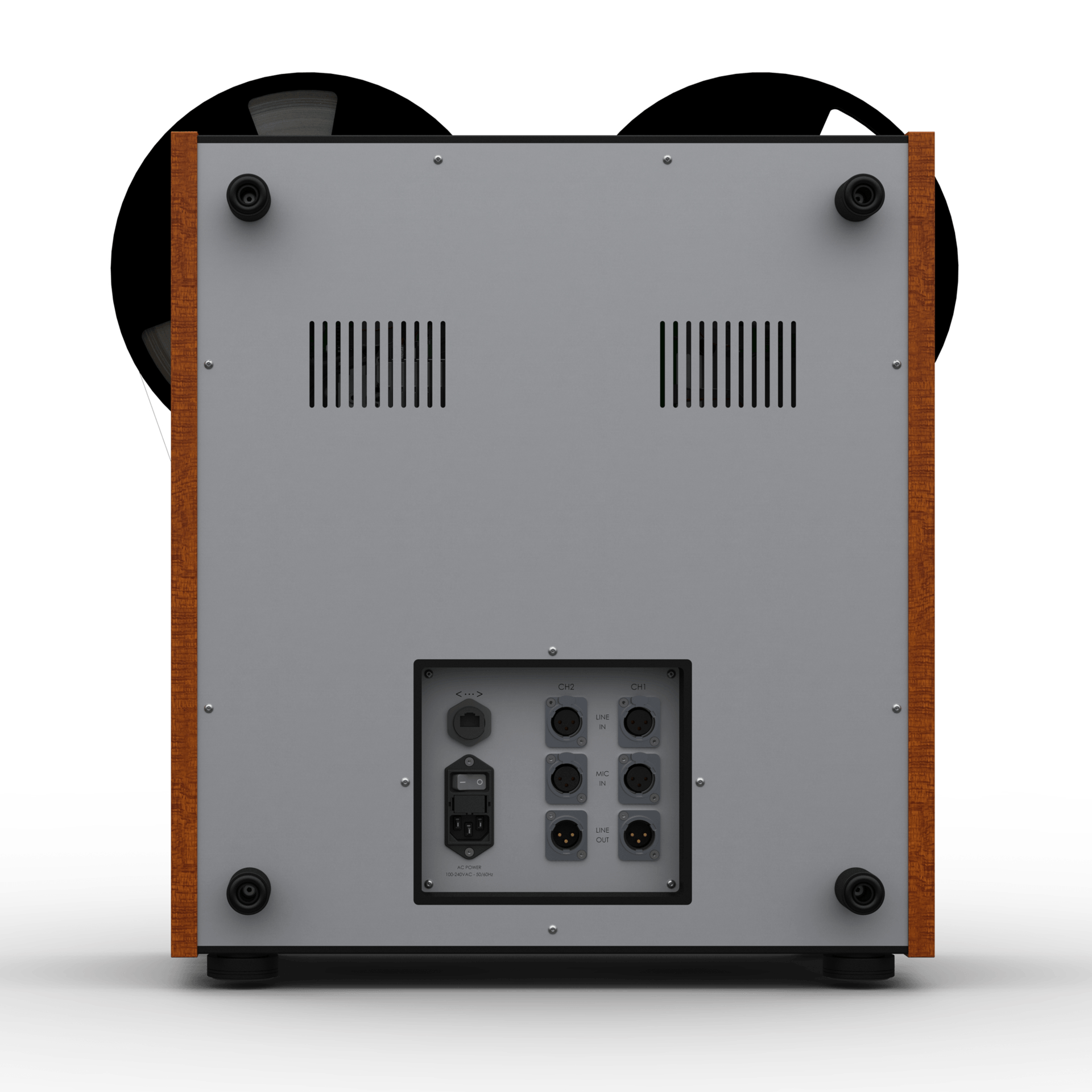

Electrical • Power Supply : Connector = IEC 3-pole, Voltage Range = 90 to 264 VAC, Frequency Range = 47 to 63 Hz Power Consumption = 40 W maximum Input 1 : Connector = XLR, Level selectable = Balanced : +4dBu (in CAL), Unbalanced : -10dBV (in CAL) Input 2 : Connector = XLR (powered 48V) Level selectable = -60 dBV (in CAL), -40 dBV (in CAL) Output : Connector = XLR, Level selectable = Balanced = +4dBu (in CAL), Unbalanced = -10dBV (in CAL) Headphone Ouput : 1.5 W maximum (8 ohm load) Ethernet : RJ45 10/100Base-T for remote control and firmware update IR Input : Infrared remote control
Audio • Equalization : NAB or IEC, switchable Reproduce Record Level : 320 nWb/m or 514 nWb/m, switchable Frequency Response : 15 ips = 30hz to 22kHz (+/-2 dB) at 0 VU , 7.5 ips = 30hz to 20kHz (+/-2 dB) at 0 VU Signal-To-Noise Ratio : (THD-N, in CAL) / A-Weighting = 15 ips = 71 dB / 78 dB, 7.5 ips = 70 dB / 77 dB Distortion : 0.8% or less at 1kHz, 15 ips Channel Crosstalk : 60 dB or more Bias Frequency : ---kHz Erasure : --dB or more, at 1kHZ, ---nWb/m
Dimensions externes
